Converter

Versatility for industrial data communication

Altus offers a wide range of media converters designed to provide reliable and fast connections between switches and other communication equipment.

Compact media converter

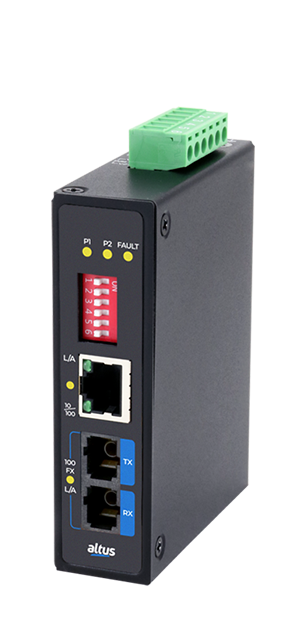

The MET2-0201-M is a 2-port media converter (1 RJ45 port and 1 Fiber port) designed for compact spaces, making it ideal for fitting into tight panels, such as machine control boxes and duct assembly rooms. For installations in harsh environments, such as machines with vibration or in-field duct assembly rooms, the MET2-0201-M can be easily mounted directly onto a DIN rail. With an IP30 rating and a durable metal alloy casing, it withstands a wide temperature range, severe electromagnetic interference, and vibration.

Interfaces

This media converter features 1 RJ45 port and 1 Fiber port

Protection

Rated IP30 for protection

Certifications

Certified with CE/FCC, UL61010-1, and UL61010-2-201 standards

Power Supply

Redundant 12-48Vdc power supply with a removable 6-pin terminal block

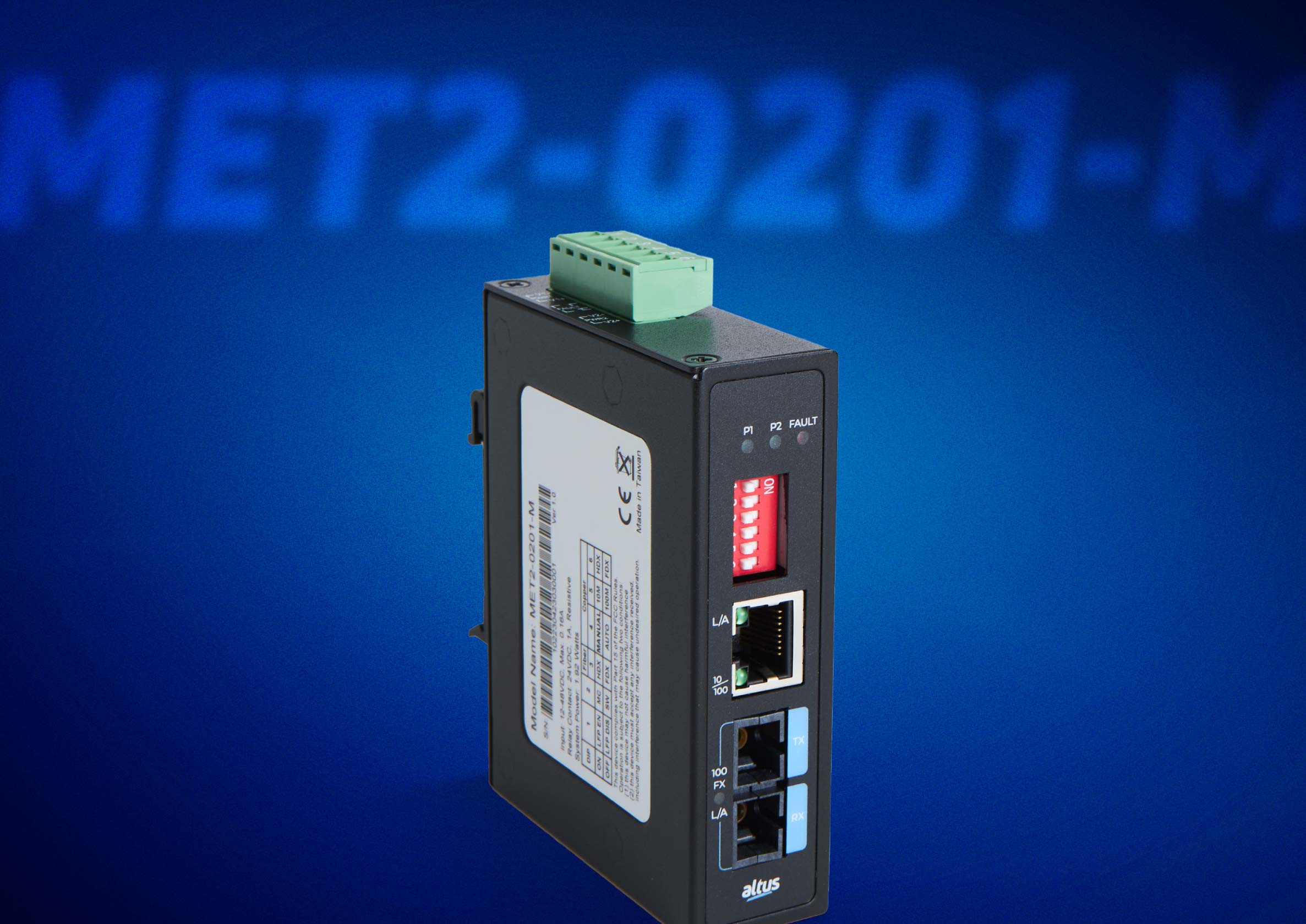

Interfaces e recursos disponíveis no produto

Product Features

Key product specifications:
- Copper ports with automatic MDI/MDI-X function
- 1 RJ45 port and 1 Fiber port (SC)
- Store-and-Forward switching architecture
- 128 Kbits memory buffer
- Redundant 12-48Vdc power supply with removable 6-pin terminal block
- Maximum current of 0.16 A
- Operating temperature range from -10°C to 70°C
- IP30 protection rating
- Designed for industrial environments with pollution degree 2
- DIN rail or wall mounting options

Compliant with key certifications

The MET2-0101-M media converter stands out for its compliance with stringent safety and quality standards. Certified with CE/FCC, UL61010-1, and UL61010-2-201, this device meets international standards for electrical safety and electromagnetic compatibility. These certifications ensure the high reliability and safety of the MET2-0101-M, making it a top choice for demanding industrial applications.

Filters:

MET2-0201-M

The MET2-0201-M is an industrial electrical to multimode optical Ethernet interface converter from the Connect Series. Robust, with IP30 protection rating and easy installation, it was designed to be used in applications in the most hostile environments.
